#!pip install shapely==1.7.1 #needed to get right shapely version

%matplotlib inline
!pip install foldable_robotics
import foldable_robotics
import foldable_robotics.dxf
import numpy
import shapely.geometry as sg
from foldable_robotics.layer import Layer
from foldable_robotics.laminate import Laminate
import foldable_robotics.manufacturing
import foldable_robotics.parts.castellated_hinge1
!pip install PyQt5
!pip install pyqtgraph
import idealab_tools.plot_tris
from math import pi, sin,cos,tan
import idealab_tools.text_to_polygons
foldable_robotics.display_height=200
foldable_robotics.line_width=.5

from foldable_robotics.layer import Layer
from foldable_robotics.laminate import Laminate
import foldable_robotics
import foldable_robotics.dxf
import foldable_robotics.manufacturing
import foldable_robotics.parts.castellated_hinge1
foldable_robotics.display_height=200
foldable_robotics.line_width=.5
!pip install pyBuildWeb


Requirement already satisfied: foldable_robotics in /usr/local/lib/python3.7/dist-packages (0.0.32)
Requirement already satisfied: numpy in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (1.21.5)
Requirement already satisfied: pyyaml in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (6.0)
Requirement already satisfied: shapely in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (1.7.1)
Requirement already satisfied: idealab-tools in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (0.0.24)
Requirement already satisfied: ezdxf in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (0.17.2)
Requirement already satisfied: pypoly2tri in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (0.0.3)
Requirement already satisfied: matplotlib in /usr/local/lib/python3.7/dist-packages (from foldable_robotics) (3.5.1)
Requirement already satisfied: pyparsing>=2.0.1 in /usr/local/lib/python3.7/dist-packages (from ezdxf->foldable_robotics) (3.0.7)
Requirement already satisfied: typing-extensions in /usr/local/lib/python3.7/dist-packages (from ezdxf->foldable_robotics) (4.1.1)
Requirement already satisfied: imageio in /usr/local/lib/python3.7/dist-packages (from idealab-tools->foldable_robotics) (2.16.1)
Requirement already satisfied: pillow>=8.3.2 in /usr/local/lib/python3.7/dist-packages (from imageio->idealab-tools->foldable_robotics) (9.1.0)
Requirement already satisfied: packaging>=20.0 in /usr/local/lib/python3.7/dist-packages (from matplotlib->foldable_robotics) (21.3)
Requirement already satisfied: python-dateutil>=2.7 in /usr/local/lib/python3.7/dist-packages (from matplotlib->foldable_robotics) (2.8.2)
Requirement already satisfied: kiwisolver>=1.0.1 in /usr/local/lib/python3.7/dist-packages (from matplotlib->foldable_robotics) (1.4.2)
Requirement already satisfied: fonttools>=4.22.0 in /usr/local/lib/python3.7/dist-packages (from matplotlib->foldable_robotics) (4.31.2)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.7/dist-packages (from matplotlib->foldable_robotics) (0.11.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.7/dist-packages (from python-dateutil>=2.7->matplotlib->foldable_robotics) (1.16.0)
Requirement already satisfied: PyQt5 in /usr/local/lib/python3.7/dist-packages (5.15.6)
Requirement already satisfied: PyQt5-Qt5>=5.15.2 in /usr/local/lib/python3.7/dist-packages (from PyQt5) (5.15.2)
Requirement already satisfied: PyQt5-sip<13,>=12.8 in /usr/local/lib/python3.7/dist-packages (from PyQt5) (12.9.1)
Requirement already satisfied: pyqtgraph in /usr/local/lib/python3.7/dist-packages (0.12.4)
Requirement already satisfied: numpy>=1.17.0 in /usr/local/lib/python3.7/dist-packages (from pyqtgraph) (1.21.5)
ERROR: Could not find a version that satisfies the requirement pyBuildWeb (from versions: none)
ERROR: No matching distribution found for pyBuildWeb

import shapely
import sys
m=sys.modules['shapely']
m.__version__


'1.7.1'

import os
import foldable_robotics.solidworks_support

def get_bodies(filename, layername, num_layers):
    body = foldable_robotics.dxf.read_lwpolylines(filename,layer=layername, arc_approx = 10)

    bodies = [Layer(sg.Polygon(item)) for item in body]
    body = bodies.pop(0)
    for item in bodies:
        body ^= item
    body = body.to_laminate(num_layers)
    return body
def get_hinge_lines(filename,layername):
    hinge_lines1 = foldable_robotics.dxf.read_lines(filename,layer=layername)
    hinge_lines2 = foldable_robotics.dxf.read_lwpolylines(filename,layer=layername)
    hinge_lines3 = []
    for points in hinge_lines2:
        hinge_lines3.append(points[:2])
    hinge_lines = hinge_lines1 +hinge_lines3
    return hinge_lines
def hinge_lines_to_hinges(hinge_lines,hinge):
    lam = Layer().to_laminate(len(hinge))
    all_hinges = []
    for p3,p4 in hinge_lines:
        all_hinges.append(hinge.map_line_stretch((0,0),(1,0),p3,p4))
    all_hinges = lam.unary_union(*all_hinges)
    return all_hinges

def get_cuts(filename,layername,thickness,num_layers):
    cut_lines = foldable_robotics.dxf.read_lines(filename,layer=layername)
    cut_lines += foldable_robotics.dxf.read_lwpolylines(filename,layer=layername, arc_approx = 10)

    cuts = []
    for item in cut_lines:
        cuts.append(Layer(sg.LineString(item)))
    cuts = Layer().unary_union(*cuts)
    cuts<<=thickness/2
    cuts = cuts.to_laminate(num_layers)
    return cuts
def get_holes(filename, layername,num_layers):
    holes = foldable_robotics.dxf.read_circles(filename,layer='holes')

    holes2 = []
    for center, radius in holes:
        holes2.append(sg.Point(*center).buffer(radius))
    holes_layer = Layer(*holes2)
    holes_lam = holes_layer.to_laminate(num_layers)
    return holes_lam
def hinge_width_calculator(desired_degrees,thickness):
    theta = (180-desired_degrees)*pi/180
    w=thickness/tan(theta)
    return w
def polys_to_layer(l1):
    l1 = [sg.Polygon(item) for item in l1]
    l11 = Layer(l1.pop(0))
    for item in l1:
        l11 ^= Layer(item)
    return l11

def output_pdf(filename,design2,x,y,layers_separate = True):
    design2 = design2.translate(x,y)
    design2=design2.scale(1/25.4,1/25.4)
    design2=design2.scale(foldable_robotics.pdf.ppi,foldable_robotics.pdf.ppi)
    if isinstance(design2,Laminate):
        if not layers_separate:
            p=foldable_robotics.pdf.Page(filename+'.pdf')
            for d in design2:
    #        d = design2[0]
                for item in d.exteriors()+d.interiors():
                    p.draw_poly(item)
            p.close()
        else:
            for ii,d in enumerate(design2):
                p=foldable_robotics.pdf.Page(filename+'{0:03f}.pdf'.format(ii))
                for item in d.exteriors()+d.interiors():
                    p.draw_poly(item)
                p.close()

    elif isinstance(design2,Layer):
        p=foldable_robotics.pdf.Page(filename+'.pdf')
        for item in design2.exteriors()+design2.interiors():
            p.draw_poly(item)
        p.close()

def build_layer_numbers(num_layers, text_size = None, prop=None):
    text_size = text_size or 1
    prop = prop or {'family':'Arial','size':text_size}
    layer_ids = []
    for ii in range(num_layers):

        l = idealab_tools.text_to_polygons.text_to_polygons('Layer '+str(ii),prop=prop)
        layer_ids.append(l)

    layer_ids = [polys_to_layer(item) for item in layer_ids]
    layer_id = Laminate(*layer_ids)
    return layer_id
def build_web(design2,keepout,support_width,jig_diameter,jig_hole_spacing,is_adhesive):
    num_layers = len(design2)

    layer_id = build_layer_numbers(num_layers,text_size=jig_diameter)

    design_outer = foldable_robotics.manufacturing.unary_union(design2)
    bb1= (design_outer<<jig_hole_spacing/2).bounding_box()
    (x1,y1),p2 = bb1.bounding_box_coords()
    w,h = bb1.get_dimensions()
    w2 = round(w/jig_hole_spacing)*jig_hole_spacing
    h2 = round(h/jig_hole_spacing)*jig_hole_spacing

    points = []
    points.append(sg.Point(x1,y1))
    points.append(sg.Point(x1+w2,y1))
    points.append(sg.Point(x1,y1+h2))
    points.append(sg.Point(x1+w2,y1+h2))

    layer_id = layer_id.translate(x1+jig_diameter,y1-jig_diameter/2)
    placement_holes2 = Layer(*points)
    placement_holes2<<=(jig_diameter/2)
    sheet = (placement_holes2<<10).bounding_box()
    placement_holes2=placement_holes2.to_laminate(num_layers)
    sheet=sheet.to_laminate(num_layers)

    removable_scrap = calculate_removable_scrap(design2,sheet,support_width,is_adhesive)

    web = (removable_scrap-placement_holes2)-layer_id
    return web,sheet
def calculate_removable_scrap(design,sheet,width,is_adhesive):
    '''this computes all removable scrap given a sheet, a design, and a clearance width'''
    all_scrap = sheet-design

    ru = foldable_robotics.manufacturing.not_removable_up(design,is_adhesive)
    rd = foldable_robotics.manufacturing.not_removable_down(design,is_adhesive)

    removable_scrap_up = all_scrap-(ru<<width)
    removable_scrap_down = all_scrap-(rd<<width)

    removable_scrap = removable_scrap_up|removable_scrap_down
    return removable_scrap

##Compute 5 Layer Device Design

output_file_name = 'input.dxf'
#this dxf file was produced in autocad2022 as we could not get the .yaml macro to work

round_digits = 5
prescale=1000
body_prebuffer=-.01
joint_tolerance = 1e-5

round_digits = 5
prescale=1000
body_prebuffer=-.01
joint_tolerance = 1e-5

round_digits = 2
prescale=1000
jig_diameter = 5
support_width = 1
kerf = .05
jig_hole_spacing=20
is_adhesive = [False,True,False,True,False]
arc_approx = 10

hinge = foldable_robotics.parts.castellated_hinge1.generate()
w=hinge_width_calculator(160,0.07)
hinge = hinge.scale(1,w)

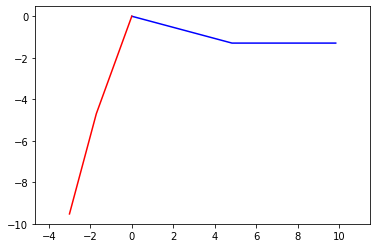

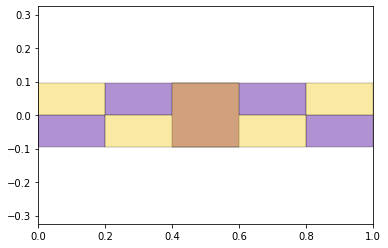

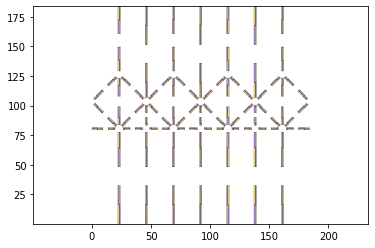

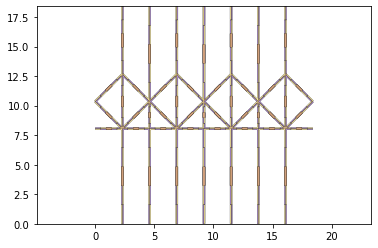

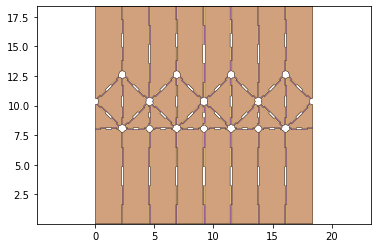

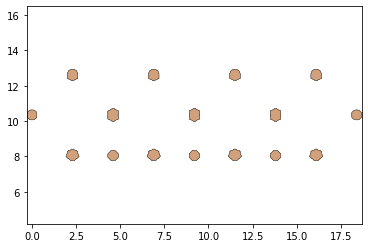

hinge.plot()

png

NUMLAYERS = len(hinge)
body = get_bodies(output_file_name,'body',NUMLAYERS)
body = foldable_robotics.manufacturing.cleanup(body,.02)

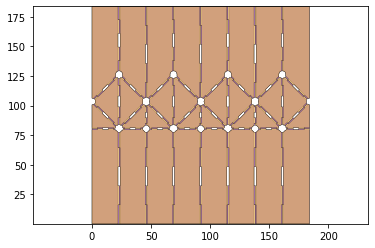

body.plot()

png

joint_lines= get_hinge_lines(output_file_name,'joints')
joints = hinge_lines_to_hinges(joint_lines,hinge)
joints = foldable_robotics.manufacturing.cleanup(joints,.02)
joints.plot()

png

cuts = get_cuts(output_file_name,'cuts',.02,NUMLAYERS)
#cuts.plot()
holes = get_holes(output_file_name,'holes',NUMLAYERS)
#holes.plot()
hole,dummy = foldable_robotics.manufacturing.calc_hole(joint_lines,w)
hole = hole.to_laminate(NUMLAYERS)
hole<<=.2
hole.plot()

png

design2 = body- hole - joints - cuts - holes

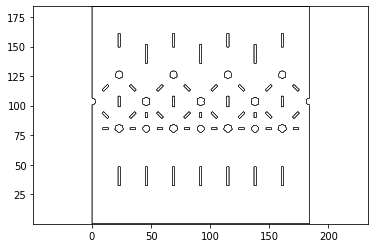

design2.plot()

png

keepout =  foldable_robotics.manufacturing.keepout_laser(design2)
keepout = keepout.scale(10,10)

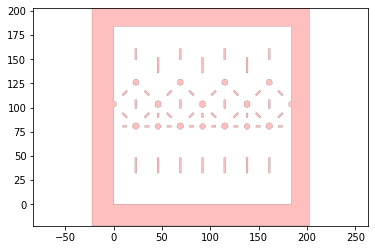

keepout.plot()

png

design2 = design2.scale(10,10)
design2.plot()

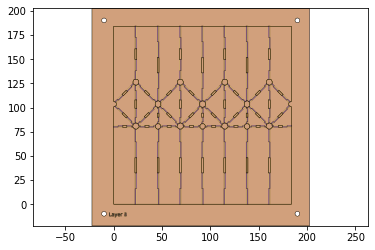

png

#Compute 5 Layer Manufacturing Geometry

web,sheet=build_web(design2,keepout,support_width,jig_diameter,jig_hole_spacing,is_adhesive)

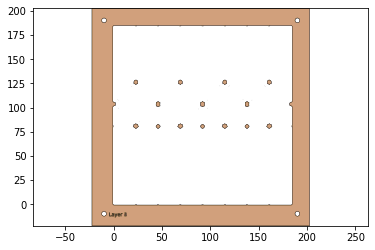

web.plot()

findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.

png

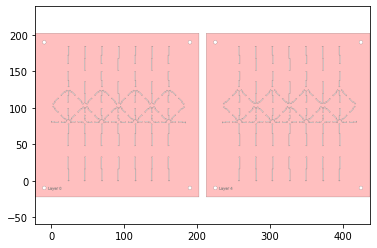

sheet.plot()

png

second_pass_scrap = sheet - keepout
first_pass_scrap = sheet - design2-second_pass_scrap
first_pass_scrap = foldable_robotics.manufacturing.cleanup(first_pass_scrap,.000001)
first_pass_scrap.plot()

png

support = foldable_robotics.manufacturing.support(design2,foldable_robotics.manufacturing.keepout_laser,support_width,support_width/2)
support.plot()

png

#Calculate the web by using only the material which can be cut, minus a gap determined by the support width.  Is that the only material you can use?
supported_design = web|design2|support
supported_design.plot()

png

#cut_line = keepout<<kerf
cut_material = (keepout<<kerf)-keepout
cut_material.plot()

png

final_cut = sheet - keepout
final_cut = final_cut[0]
final_cut.plot()

png

remaining_material = supported_design-cut_material
remaining_material.plot()

png

remaining_parts = foldable_robotics.manufacturing.find_connected(remaining_material,is_adhesive)
for item in remaining_parts:

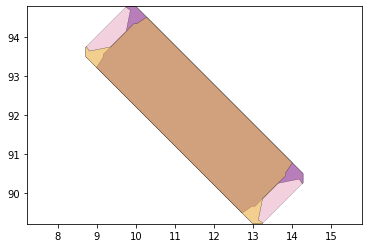

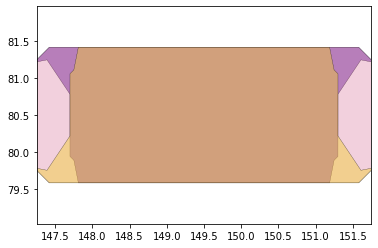

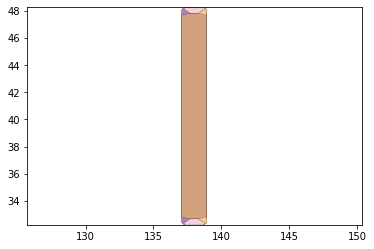

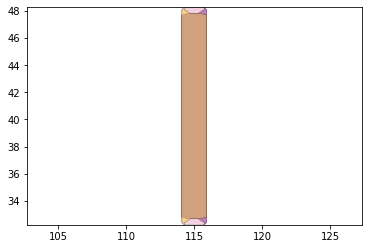

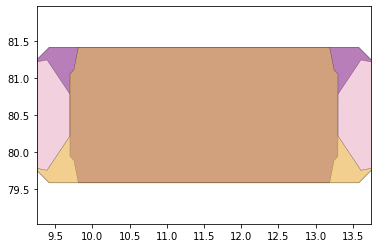

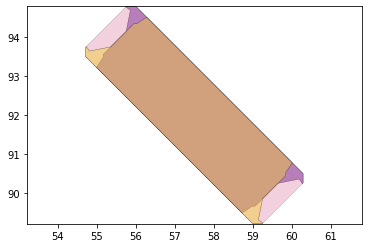

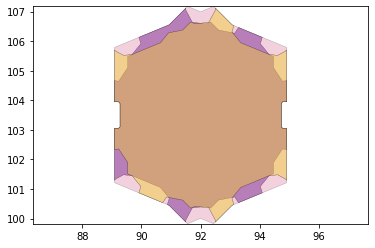

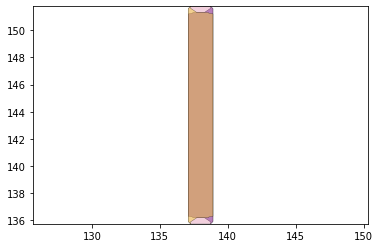

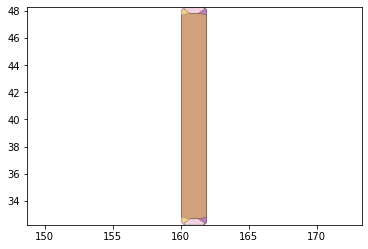

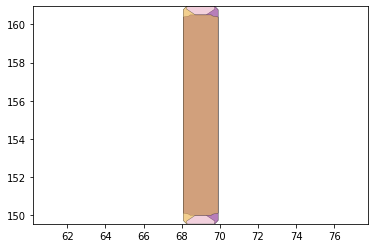

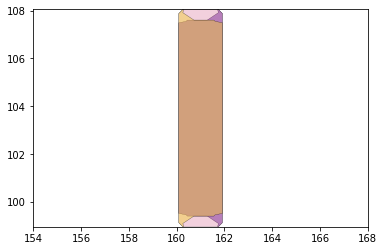

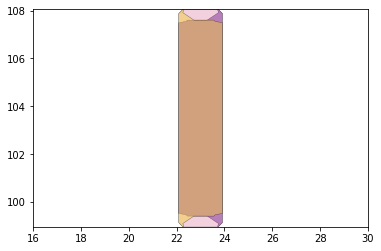

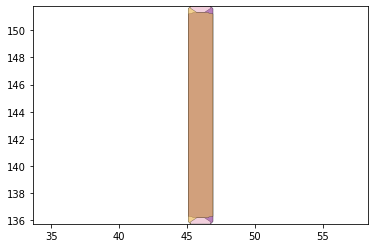

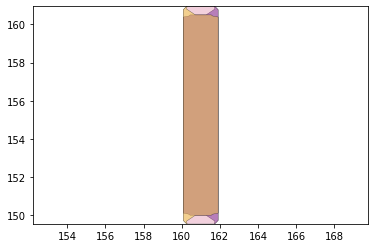

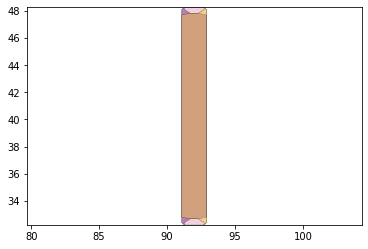

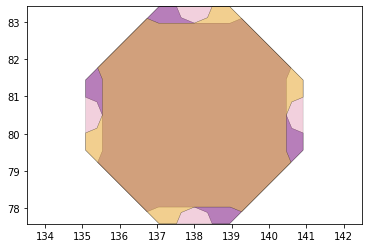

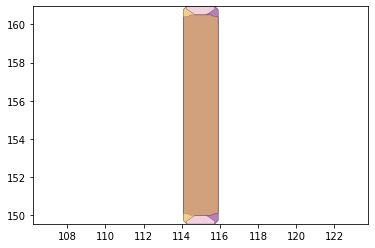

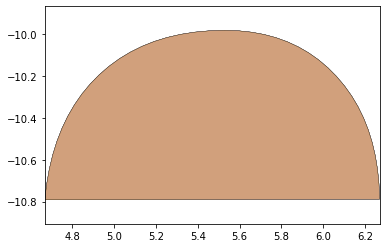

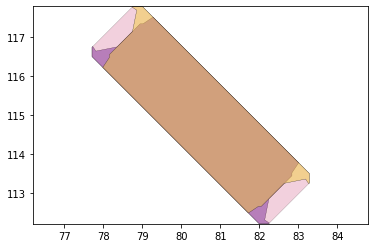

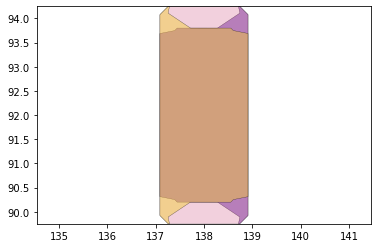

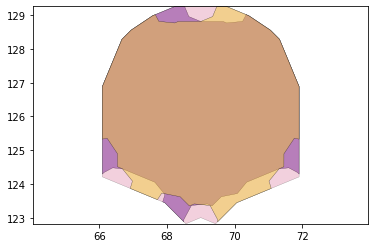

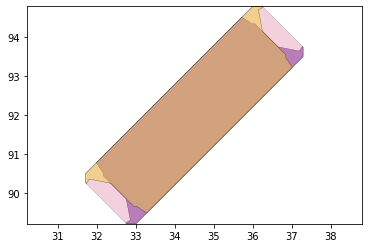

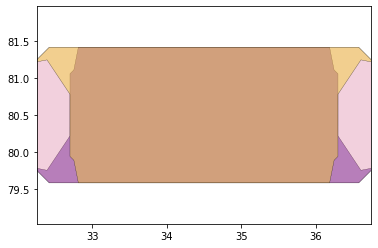

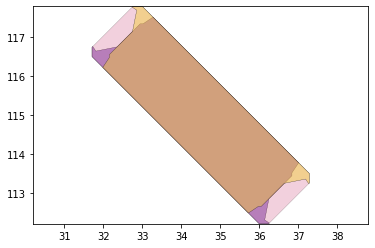

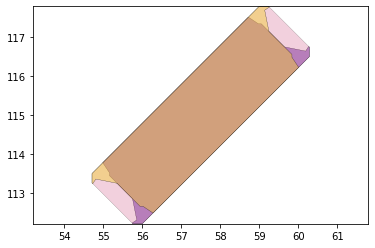

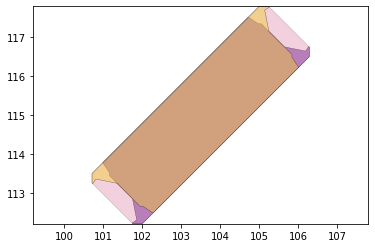

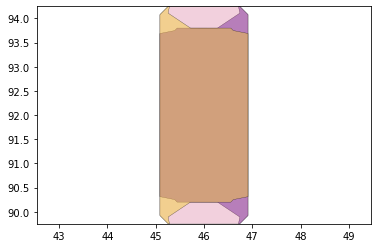

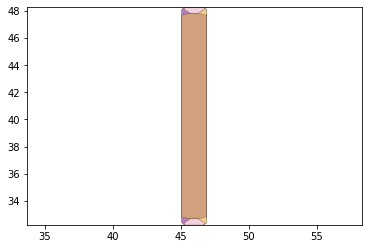

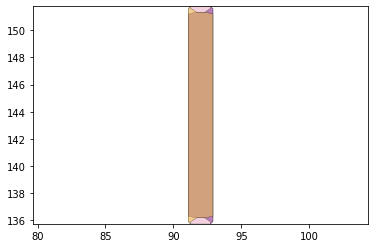

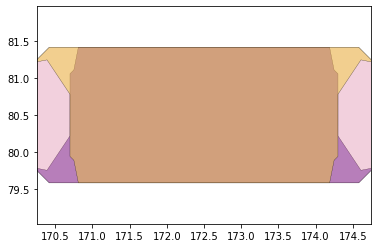

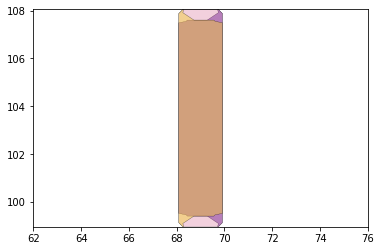

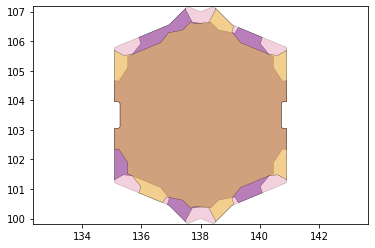

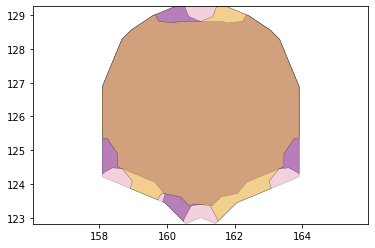

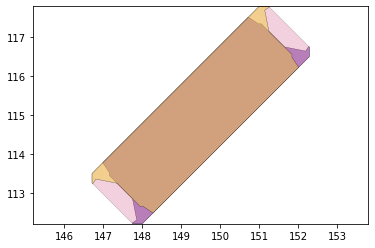

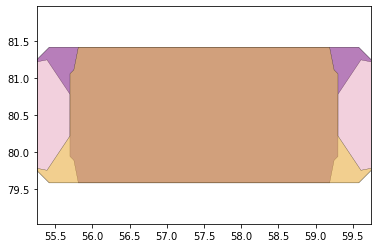

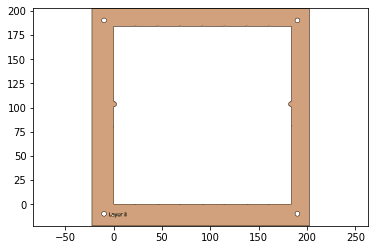

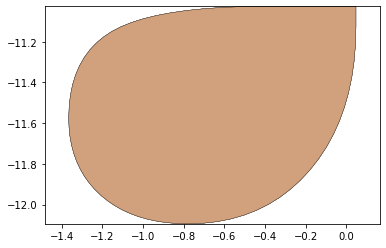

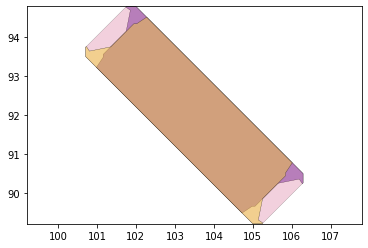

    item.plot(new=True)

/usr/local/lib/python3.7/dist-packages/foldable_robotics/laminate.py:91: RuntimeWarning: More than 20 figures have been opened. Figures created through the pyplot interface (`matplotlib.pyplot.figure`) are retained until explicitly closed and may consume too much memory. (To control this warning, see the rcParam `figure.max_open_warning`).
  plt.figure()

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

d3=design2>>1
for item in remaining_parts:
    if not (item&d3).is_null():
        break
item.plot()

png

check = (item^design2)

check>>=1e-1 #tenth of a mm
check.plot()
check

('zero-size array to reduction operation minimum which has no identity',)

svg

w,h = supported_design.get_dimensions()
p0,p1 = supported_design.bounding_box_coords()

rigid_layer = supported_design[0] | (supported_design[-1].translate(w+10,0))

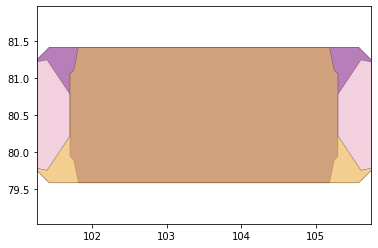

rigid_layer.plot()

png

l4 = supported_design[3].scale(-1,1)
p2,p3 = l4.bounding_box_coords()
l4 = l4.translate(p0[0]-p2[0]+10+w,p0[1]-p2[1])

adhesive_layer = supported_design[1] | l4
adhesive_layer.plot()

png

first_pass = Laminate(rigid_layer,adhesive_layer,supported_design[2])
first_pass.plot()

png

if check.is_null(): #errors are very very small and are thus being ignored
  first_pass.export_dxf('first_pass')
  final_cut.export_dxf('final_cut')

##Single Layer Design

radius = .01
num_perforations = 5
num_segments = num_perforations*2+1
num_points = num_segments+1
a=numpy.r_[0:1:num_points*1j]
lines = []
for ii in range(int(len(a)/2)-1):
    p1 = sg.Point(a[2*ii+1]+radius,0)
    p2 = sg.Point(a[2*ii+2]-radius,0)
    lines.append(sg.LineString((p1,p2)))
hinge2 = Layer(*lines)
hinge2<<=radius
hinge3 = hinge2.to_laminate(1)

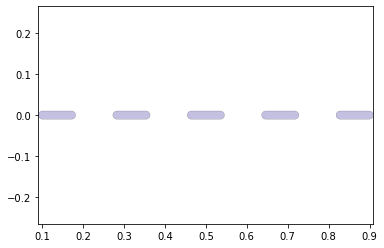

hinge3.plot()

png

NUMLAYERS2 = 1
body2 = get_bodies(output_file_name,'body',NUMLAYERS2)
body2 = foldable_robotics.manufacturing.cleanup(body2,.02)

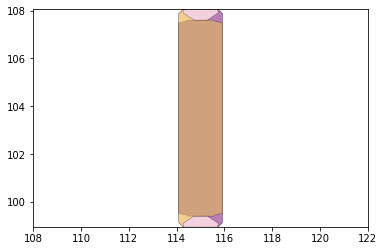

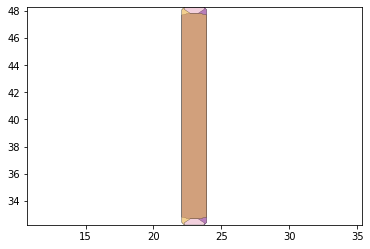

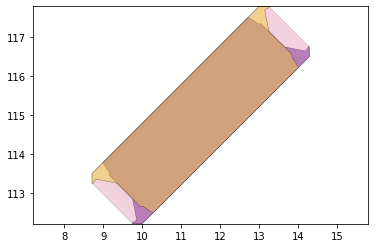

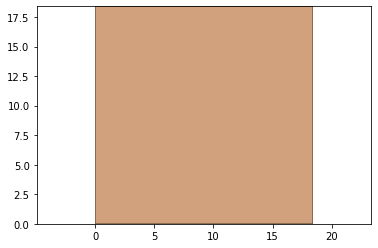

body2.plot()

png

joint_lines= get_hinge_lines(output_file_name,'joints')
joints2 = hinge_lines_to_hinges(joint_lines,hinge3)
#joints2 = foldable_robotics.manufacturing.cleanup(joints2,.02)

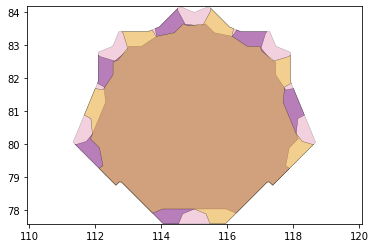

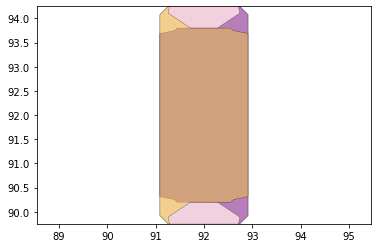

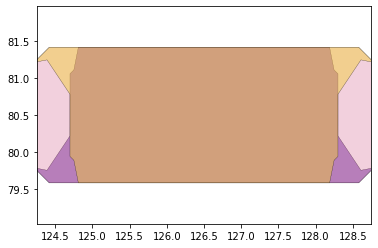

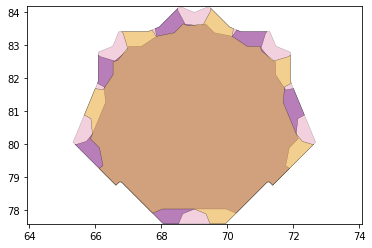

joints2.plot()

png

cuts2 = get_cuts(output_file_name,'cuts',.02,NUMLAYERS2)
cuts2.plot()
holes2 = get_holes(output_file_name,'holes',NUMLAYERS2)
#holes2.plot()
hole2,dummy = foldable_robotics.manufacturing.calc_hole(joint_lines,w/2)
hole2 = hole2.to_laminate(NUMLAYERS2)
hole2<<=.2
hole2.plot()

png

png

design3 = body2- hole2 - joints2 - cuts2 - holes2

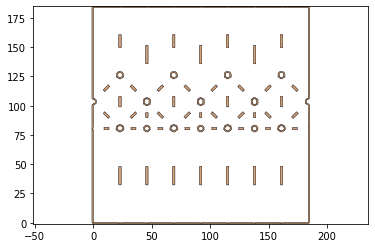

design3.plot()
#finished with single layer design

('zero-size array to reduction operation minimum which has no identity',)

design3.export_dxf('single layer design')
