Raw CAD design files

We made a 5 layered laminate initially. The below is the the DXF file and laminate image of the 5 layered laminate.

Python Generated DXF File

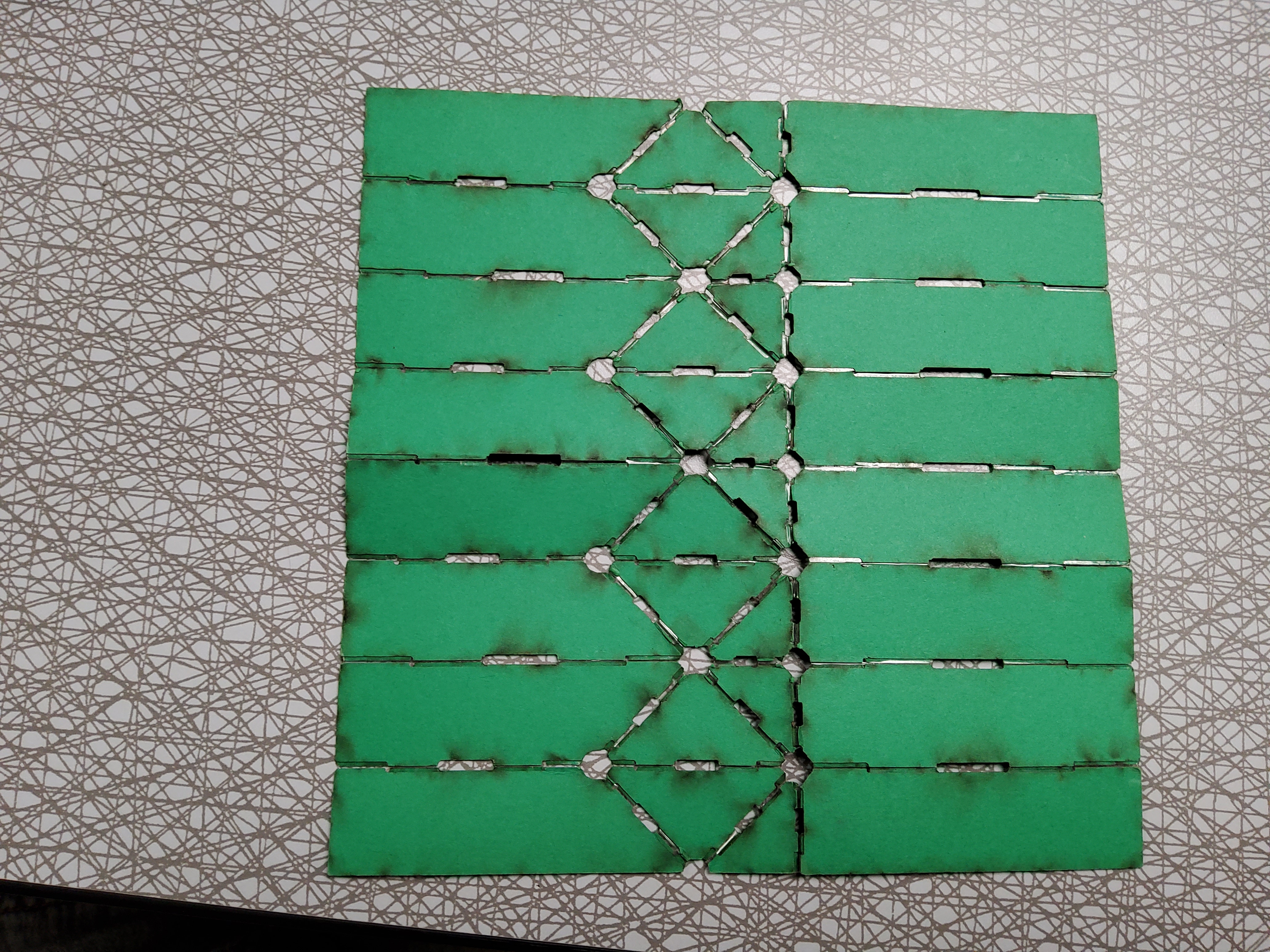

Final Laminate Structure

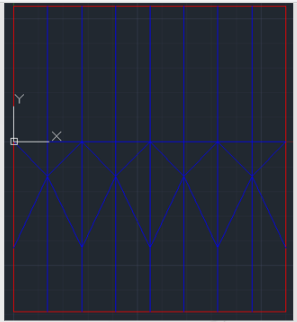

We also made 2 CAD files for single layered. The below is the the DXF file image of single layered structure.

Straight Leg

Angled Leg
